Built To Endure…

Raptor Design & Engineering Has One Mission: Build the best aluminum jet boats.

Heavy-duty, high performance shallow water capable aluminum jet boats are our passion!

Which River Raptor Model Is Right For You?

  • SR-XR-8
  • SR-XD
  • Recon
  • XTR
  • FTX
  • XR-8
  • XD
  • XR
  • Raptor
  • Talon
More Info
  • Overall Length: 22'
  • Bottom Width: 72"
  • Hull Deadrise: 8°
  • Side Height: 30"
  • Fuel Capacity: 40gal
  • Top Speed: 48mph
  • Static Draft: 10-11"
  • Bottom Thickness: .190"

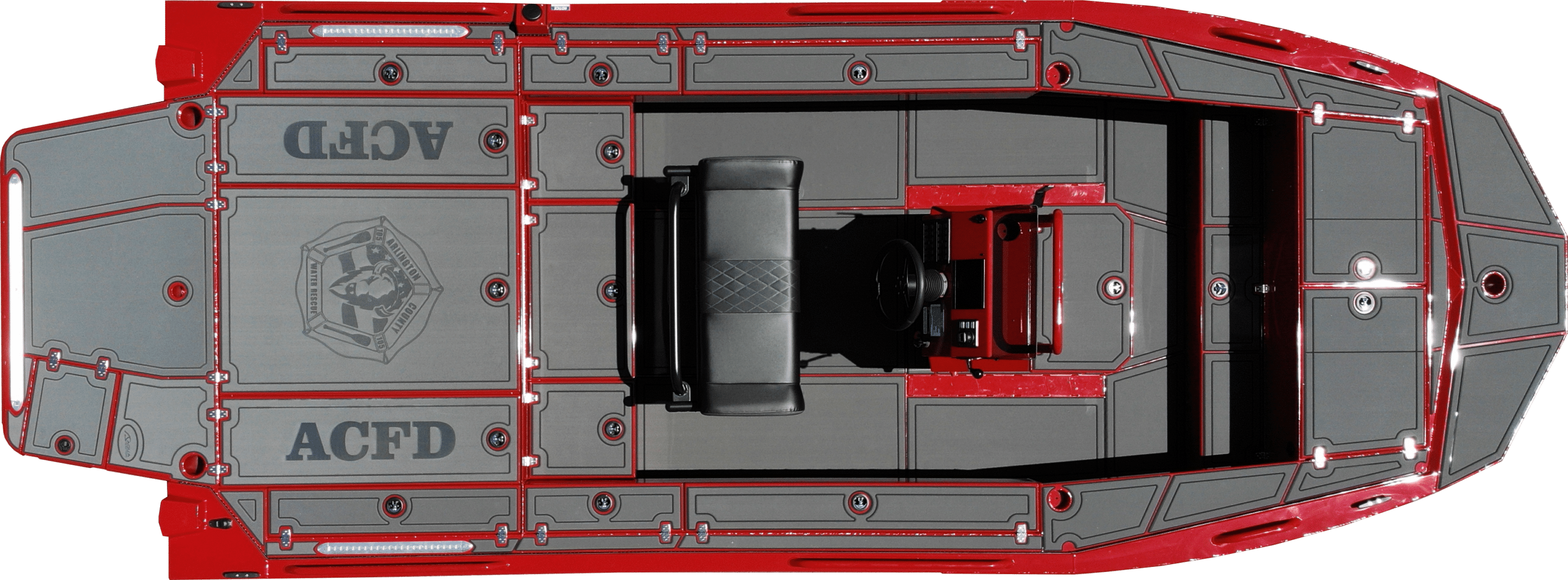

The SR-XR-8 is our 22’ hull for water rescue and scene command. It runs super skinny on plane, but the 8-degree hull and American Turbine SD203 8" pump make the transition to heavy river flow and lake operations seamlessly. This boat is a load hauler too....load up on gear...this one doesn't care. It can be outfitted with 360-degree scene lighting, recessed bow lighting, remote search lighting, underwater lighting, interior lighting, imaging (down scan, side scan, live imaging, thermal imaging), communications (vhf radios, mobile radios, noise cancelling headsets), davit cranes and tow towers… just the tools you need to provide incident support and get the job done. This is your shallow water incident command mothership!
More Info
  • Overall Length: 20'4"
  • Bottom Width: 72"
  • Hull Deadrise: 6°
  • Side Height: 30"
  • Fuel Capacity: 35gal
  • Top Speed: 49mph
  • Static Draft: 6-7"
  • Bottom Thickness: .190"
The SR-XD is our 20' hull for water rescue and scene command. The 6-degree hull and lightweight powertrain provide an exceptionally shallow draft making this a great platform when operating in low water conditions is required. This shallow water beast can be accessorized with 360-degree scene lighting, recessed bow lighting, remote search lighting, underwater lighting, interior lighting, imaging (down scan, side scan, live imaging, thermal imaging), communications (vhf radios, mobile radios, noise cancelling headsets), davit cranes and tow towers...just the tools you need to provide incident support and get the job done.
More Info
  • Overall Length: 20'
  • Bottom Width: 60"
  • Hull Deadrise: 6°
  • Side Height: 27"
  • Fuel Capacity: 23gal
  • Top Speed: 43mph
  • Static Draft: 6-7"
  • Bottom Thickness: .190"
The RECON is our 20' hull, open layout, walk around center console model shallow water marine apparatus...engineered for law enforcement and rescue operations on smaller, extremely shallow waterways. This boat is light and fast...will get you there and back in a hurry, but still built every bit as Raptor Tough as our other service models. Makes a great two-person patrol boat or small team rescue craft.
More Info
  • Overall Length: 14'11"
  • Bottom Width: 60"
  • Hull Deadrise: 10°
  • Side Height: 27"
  • Fuel Capacity: 19gal
  • Top Speed: 43mph
  • Static Draft: 6-7"
  • Bottom Thickness: .190"
The XTR Series combines the best attributes of a UHMW coated heavy-duty aluminum bottom boat, an inflatable boat and inboard jet propulsion. These boats run super skinny, are extremely maneuverable, fender nicely against hard objects, and have the power that an outboard inflatable can only dream of. These boats absolutely handle swift water and heavy flow. If you run one...you'll want one!
More Info
  • Overall Length: 22'
  • Bottom Width: 72"
  • Hull Deadrise: 10°
  • Side Height: 32"
  • Fuel Capacity: 40gal
  • Top Speed: 48mph
  • Static Draft: 12"
  • Bottom Thickness: .190"
The FTX is our Western style line of watercraft with a full walk-through windshield & open cockpit design. It can be designed with full front and rear fishing decks or with a recessed front deck and open rear layout. It can serve as a hunting, fishing, or utility load hauler. Work or play...this line of watercraft provides the space and power to get it done in shallow water!
More Info
  • Overall Length: 22'
  • Bottom Width: 72"
  • Hull Deadrise: 8°
  • Side Height: 32"
  • Fuel Capacity: 40gal
  • Top Speed: 48mph
  • Static Draft: 11"
  • Bottom Thickness: .190"
The XR-8 is our 22', 8-degree hull, open bow style shallow water fishing boat. Powered by the Indmar 2.3L EcoBoost coupled to an American Turbine SD-203 8" pump, it's a bigger, heavier, smoother fishing platform...running just as shallow on plane as the smaller 6-degree boats, but handling chop, wake, and wave action better. A boat with spacious decks and tons of storage, it makes a great multi-species shallow water fishing platform.
More Info
  • Overall Length: 20'4"
  • Bottom Width: 72"
  • Hull Deadrise: 6°
  • Side Height: 31"
  • Fuel Capacity: 35gal
  • Top Speed: 49mph
  • Static Draft: 7"
  • Bottom Thickness: .190"
The XD is our 20' hull, extreme-duty open bow style shallow water fishing boat. Higher sides, a raised intake, and self-bailing decks make this a great shallow water performer that's also at home on smaller lakes and bays.
More Info
  • Overall Length: 20'
  • Bottom Width: 66"
  • Hull Deadrise: 6°
  • Side Height: 27"
  • Fuel Capacity: 23gal
  • Top Speed: 49mph
  • Static Draft: 7"
  • Bottom Thickness: .190"
The XR is our 20', 6-degree hull, open bow, low profile style shallow water fishing boat. Available in conventional center console stand or in 2-seater or 4-seater dual side console configuration, it's the ultimate river fishing machine!
More Info
  • Overall Length: 20'
  • Bottom Width: 66"
  • Hull Deadrise: 6°
  • Side Height: 27"
  • Fuel Capacity: 23gal
  • Top Speed: 49mph
  • Static Draft: 7"
  • Bottom Thickness: .190"
The Raptor is our lighter weight, high performance bass boat style shallow water fishing boat. Is it a race boat or fishing boat? You decide!
More Info
  • Overall Length: 14'
  • Bottom Width: 60"
  • Hull Deadrise: 12°
  • Side Height: 22"
  • Fuel Capacity: 19gal
  • Top Speed: 48mph
  • Static Draft: 10"
  • Bottom Thickness: .190
The Talon is our minijet style watercraft built for adventure boating and pure adrenaline powered grins! THIS IS AS MUCH FUN AS YOU CAN HAVE ON THE WATER!!!
